Transparent Display ST Series

Transparent Display ST Series
Pixel Pitch: P3.91–7.82, P7.8–7.8
Cabinet Dimensions: 500 × 1000 mm & 1000 × 1000 mm
High transparency, with a transparency rate of 55%(30%-73%).
Refresh rate ≥ 3840 Hz, ultra-wide viewing angle, with a horizontal viewing angle of up to 120°.
Minimal installation and easy maintenance, ultra-quiet power supply with negligible noise.

Product Overview

PRODUCT PROFILE
Product item	Transparent Display ST Series
Pixel Pitch	P3.91–7.82, P7.8–7.8
Cabinet Size	500 × 1000 mm & 1000 × 1000 mm
Transparency Rate	30%-73% (up to 55%)
Refresh Rate	≥ 3840 Hz
Cabinet Thickness	75 mm
Cabinet Weight	About 10 kg/m²
Viewing Angle	Horizontal up to 120°‑160°

Key Features

High Transparency
With a simple structure and transparency of up to 55%, it does not obstruct natural light, transforming glass into an advertising medium and enabling the development of more valuable advertising spaces.

Ultra‑light and ultra‑thin
The product is approximately 75 mm thick and weighs about 10 kg/m².

Ultra‑Wide Viewing Angle
Horizontal and vertical viewing angles of 160°, offering a wide field of view with no color distortion.

Easy to install and cost‑effective. High strength，the panel has been tested to breaking point 2.1 tons.Taking a safety factor of 6‑23m of trans LED can be safely hung.

Application Scenarios

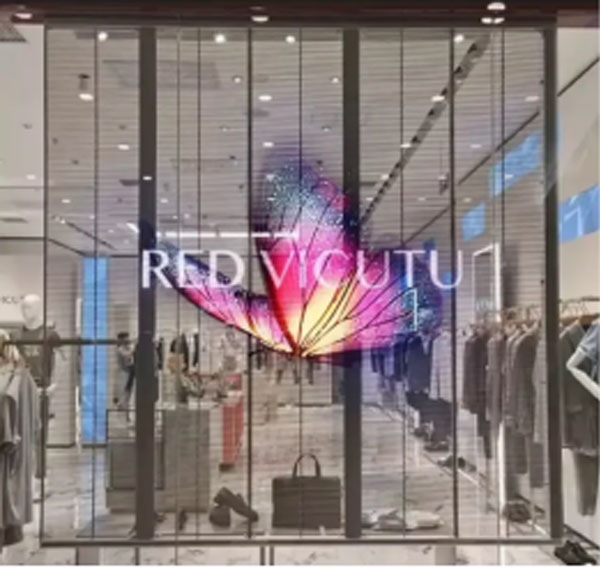

ST series transparent LED screen is widely used in glass curtain walls, glass railings, glass storefronts, shopping mall display windows and interior decoration projects, bringing unique transparent advertising display solutions for commercial buildings and retail stores.

FAQ

Q: What factors will affect the transparency of ST transparent LED screen?

A: The pixel pitch determines the transparency. Larger pixel pitch brings higher transparency, you can choose the appropriate model according to your lighting and advertising requirements.

Q: Does the transparent screen need complicated steel frame structure?

A: ST series is light‑weight. It can be directly hung on glass curtain wall without heavy steel frame, which greatly reduces engineering cost.

Q: Can the ST transparent screen work under outdoor rainy environment?

A: It supports outdoor use. Please select the outdoor version and do good waterproof treatment for power supply and wiring position.

Q: What kind of warranty and after‑sales service do you provide?

A: Standard 2‑year warranty is available. We supply technical support, spare parts and remote guidance. On‑site service can be arranged upon negotiation for large projects.
