Outdoor Fixed‑Installation LED Displays OA series

Pixel Pitch: P4.44, P5.71, P6.66, P8, P10
Module Dimensions: 480 × 320 mm
Cabinet Dimensions: 960 × 960 × 96 mm
The OA-480 Outdoor Fixed Installation Series offers a choice of aluminum or plastic dual-base housings to accommodate a variety of installation scenarios. It features ultra-high-definition image quality, supporting high-definition displays for advertising and sporting events. With front and rear maintenance access and an IP65 protection rating, it offers exceptional durability. The ultra-slim design reduces installation burden, while efficient heat dissipation ensures stable operation.

Product Overview

PRODUCT PROFILE
Product item	Outdoor Fixed‑Installation LED Displays OA series
Pixel Pitch	P4.44, P5.71, P6.66, P8, P10
Module Dimensions	480 × 320 mm
Cabinet Size	960 × 960 × 96 mm

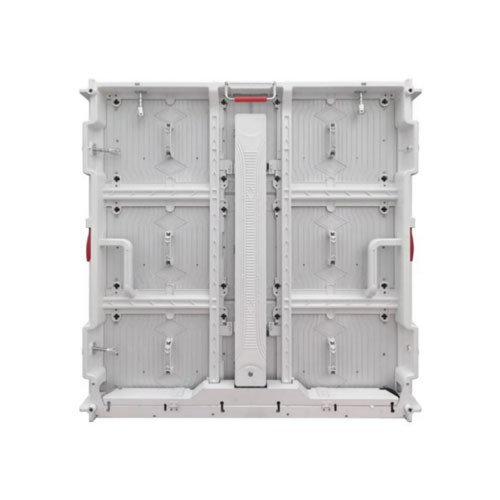

Cabinet Housing	Aluminum or plastic dual‑base housings
Maintenance Type	Front and rear maintenance access
Protection Grade	IP65 / IP67
Max Brightness	More than 10,000 nits, light decay ≤5%

Key Features

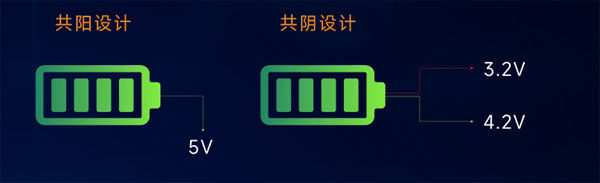

Super stable & Common cathode energy‑saving design
All aluminum module shell, Energy savings of 10%–30%, low failure rate, longer service life, cable‑less connection and reduced maintenance costs.

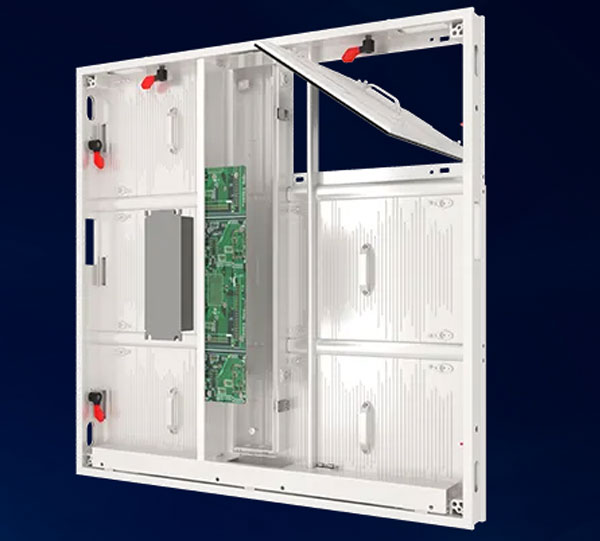

Supports Front and Rear Maintenance
With dual front and rear maintenance access, operation is simple, and installation and maintenance are quick—truly saving you time and effort.

Super High brightness
High brightness more than 10,000 nits with light decay≤5%,IP67 for P6.67 P8 P10 aluminum Frame.

Super safe
TUV 5VB fire test approved. IP68 certification test. EMC‑class B test certification.

Application Scenarios

OA series outdoor aluminum cabinet LED display fits for outdoor advertising media, commercial plaza, building exterior wall advertising, sports event display and other outdoor fixed‑installation projects. It supports both front‑maintenance and rear‑maintenance to adapt different site conditions.

FAQ

Q: What is the advantage of common cathode design for OA series?

A: Common cathode solution can save 10%‑30% power consumption, lower operating temperature, reduce failure rate and extend screen service life.

Q: Can I choose front‑only maintenance without reserved back space?

A: Yes, OA cabinet supports dual‑access, you can choose front‑maintenance if no rear space on site.

Q: What safety certifications does OA outdoor aluminum cabinet have?

A: Passed TUV 5VB fire test, IP68 test and EMC‑class B test for better outdoor safety performance.

Q: What kind of warranty and after‑sales service do you provide?

A: Standard 2‑year warranty is available. We supply technical support, spare parts and remote guidance. On‑site service can be arranged upon negotiation for large projects.
